CMM Loc-N-Load™ Docking Rails and End Caps (Inch)
Price range: $322.00 through $1,610.00
CMM table-mount docking rail for Loc-N-Load™ fixture plates. Anchors to your coordinate measuring machine table and provides the repeatable snap-in interface for all modular plates.
| Size | SKU | Price | Qty | |
|---|---|---|---|---|
| 2x12-docking-rail | LNL-DOCK-12 | $322.00 | ||
| 2x18-docking-rail | LNL-DOCK-18 | $368.00 | ||
| 2x30-docking-rail | LNL-DOCK-30 | $569.25 | ||

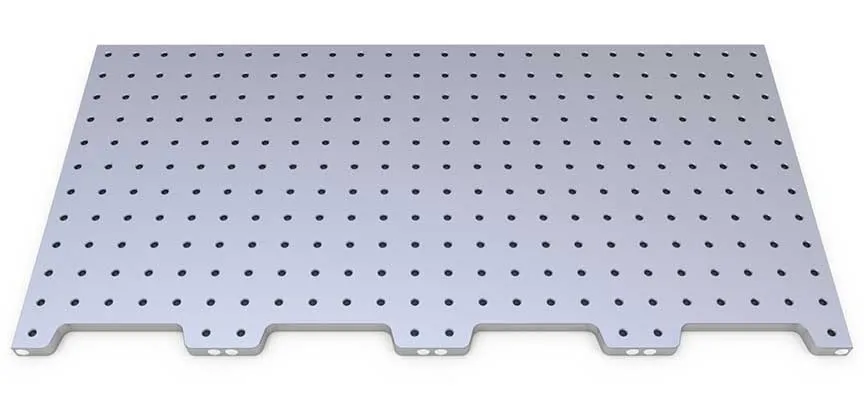

| 24x12-dock | LNL-DOCK-2412 | $1,610.00 | ||
| 2x18-end-cap | LNL-ENDCAP-18 | $445.05 | ||
| 2x30-end-cap | LNL-ENDCAP-30 | $454.25 |
Inspection Arsenal® Loc-N-Load™ Docking Rails mount directly to your coordinate measuring machine (CMM) table and serve as the repeatable anchor interface for all Loc-N-Load™ fixture plates. Once the rail is set, plates snap in and out in under 10 seconds — no re-indicating, no repositioning.
End caps secure the rail ends and prevent lateral movement under inspection loads. Compatible with all Loc-N-Load™ plate sizes in both inch and metric configurations. Precision-machined aluminum construction with hard-anodized finish.
The foundation of an Inspection Arsenal® CMM fixturing system. Designed for ISO 9001, AS9100, ISO 13485, and IATF 16949 quality environments. Made in USA — Boylston, MA.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| size | 24×12 Docking Rail, 2×12 Docking Rail, 2×18 Docking Rail, 2×18 End Cap, 2×30 Docking Rail, 2×30 End Cap, 6×3 Docking Rail |
